Lennox Merit Series 3-ton equipment package containing the ML14KC1-036-230A01 single-stage R-454B outdoor air conditioner, ML180UH070E36BK 80% AFUE gas furnace, and CK40CT-36B-71 cased aluminum evaporator coil with factory-installed R-454B TXV. The condenser is rated 208/230V, single phase, 60 Hz and has a 76 dBA sound rating. Exact matched-system efficiency and the AHRI reference must be confirmed for the final equipment combination. Manufacturer availability and warranty terms apply.

Package Includes

Outdoor air conditioner: ML14KC1-036-230A01
Gas furnace: ML180UH070E36BK
Indoor evaporator coil: CK40CT-36B-71

Specifications

Brand: Lennox
System type: Central air conditioning equipment package
Nominal capacity: 3 Ton
Refrigerant: R-454B
Cooling operation: Single-stage scroll compressor
Condenser electrical: 208/230V, 1 phase, 60 Hz; MCA 21.8A; MOCP 30A
Condenser sound rating: 76 dBA
Condenser dimensions (D x W x H): 28.25 x 28.25 x 37.25 in
Condenser shipping weight: 200 lb
Furnace efficiency: 80% AFUE
Furnace output: 66,000 BTU/h
Furnace electrical: 120V, 1 phase, 60 Hz
Indoor coil: Cased upflow aluminum coil with factory-installed R-454B TXV

Product Information

Availability is subject to manufacturer supply. Exact matched-system efficiency and the AHRI certification reference depend on the final approved equipment combination and must be confirmed before purchase.

Manufacturer warranty eligibility and terms apply. Product registration and other conditions may be required.

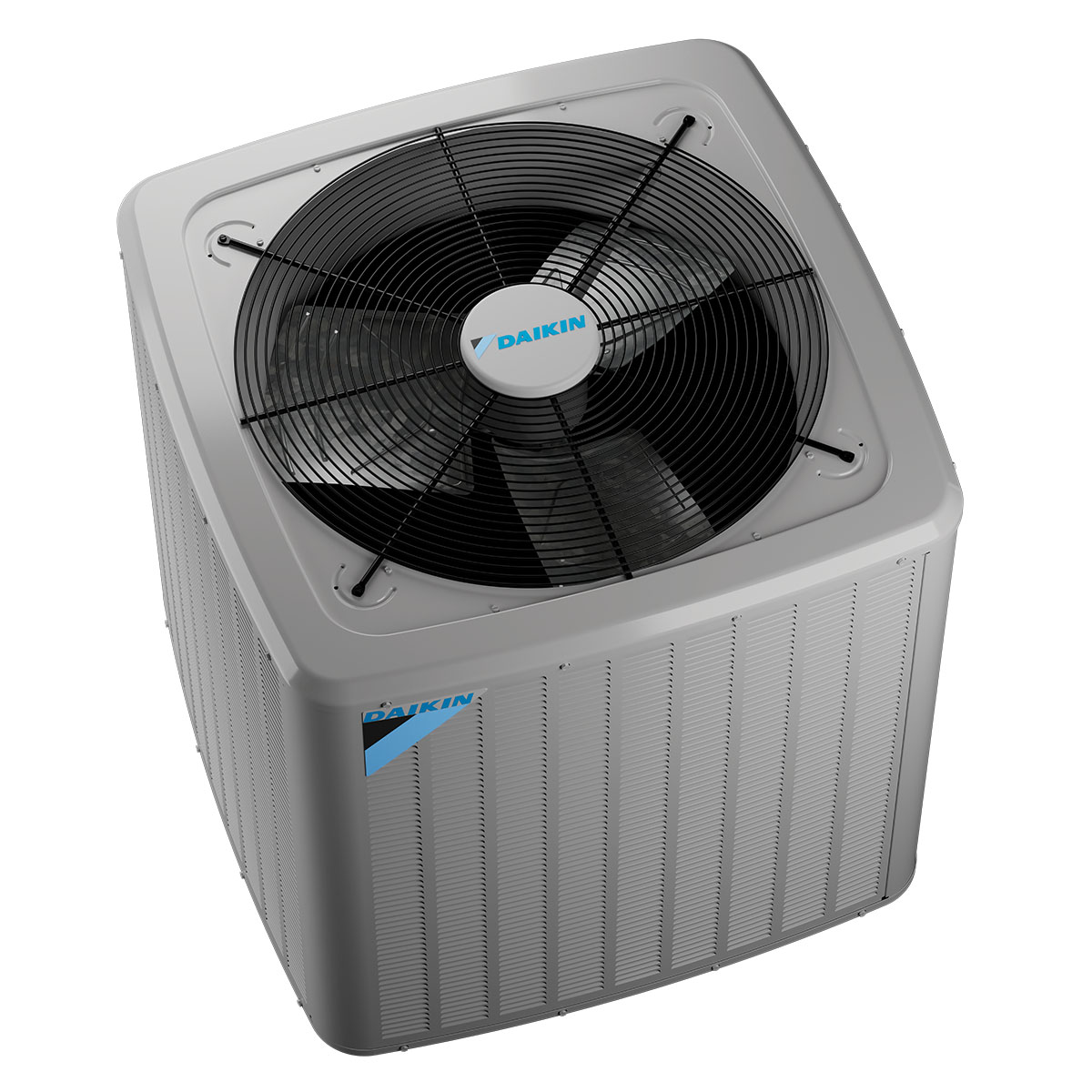

Daikin DX5SEA3610 — 3 Ton Central AC
